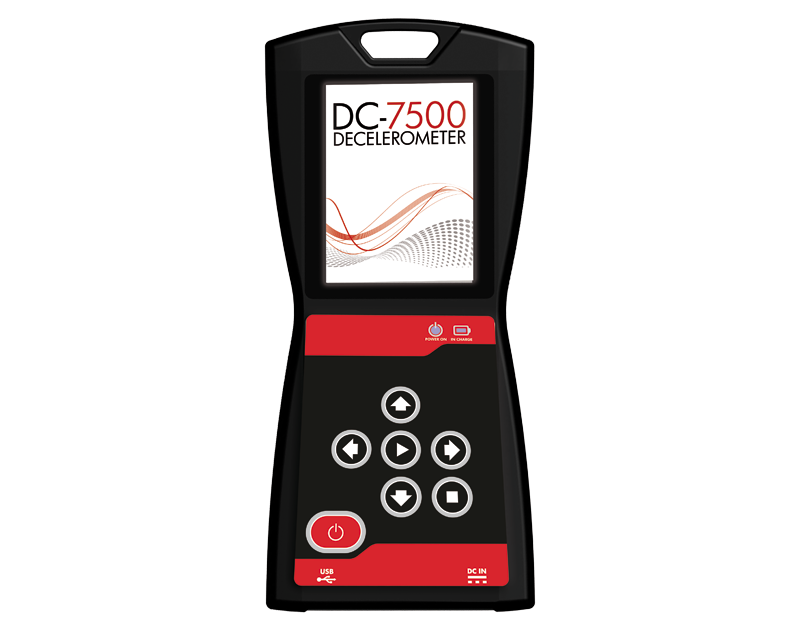

BRAIN BEE — DC 7500

DC-7500 Decelerometer terms of use aligned with 2014/45/UE and additional applicable national regulations.

DC-7500 Decelerometer performs brake efficiency testing provided with Bluetooth® technology.

Test Report can also be hardcopy printed through Bluetooth® optional printer (or free use software, available on GoLive portal for UK and Romania market only).

DEDICATED OPTIONAL PRINTER

Final Report

Once the test has been carried out, the report can always be printed:

Via the connection to the PC: using the specific software WINDC-7500 a report can be printed in real-time or after a series of tests. The software will also allow you to keep a useful database of interventions and add notes and remarks from your PC.
Via the thermal printer DC-7550 (optional): thanks to the BLUETOOTH CONNECTION to the decelerometer and the separate battery, once the test has been completed,the report printout can be launched from anywhere in the workshop.

DC-7510 - level force sensor

with pedal adapter (optional)

Functional to the measurement of the effort on the brake pedal, it returns the parameter associated to the brake pedal force to enable the vehicle to stop according to the times and spaces defined by the legislation. An adapter for motorcycles is also available

DC-7520 - test start button (optional)

Useful in the absence of DC-7510 PEDAL SENSOR. It allows handing the start of the brake test.

Ask us for a demonstration

Evaluate the high quality of BRAIN BEE products directly in your workshop

Request for a demo

Technical Data

CALCULATION METHOD Automatic pitch compensation Automatic compensation of vertical deviaton Vectorial deceleration calculation Alarm for Position sensor error	PARAMETERS Pedal force trigger (10 100 N) Pretrigger (10 % of total test time) Test time (5÷10 sec) Sampling time (20 or 40 ms) Calculation method (98/12/EC)
PEDAL/LEVER FORCE SENSORS 2 load cell sensors Full scale: 1000 n Lenght cable: 2500 mm Velcro band to fix on brake pedal and lever handle	MEMORY 8 registration of: n deceleration pedal force waveforms,max and average pedal force, max and average deceleration , brake efficiency, start, end and total test time, start speed and distance
CALCULATED VALUES Pedal force max and average Deceleration max and average Brake efficiency Brake time (start, end, duration) Start speed Distance	PRINTER (OPTIONAL) 24 columns dot matrix printer Termic Paper width 57,5 mm
CALIBRATION Yearly with included accessories	POWER SUPPLY Inner li-ion battery pack with battery charger supplied with the tool
DISPLAY Display LCD TFT color 3,5” 320 X 240 700 CD/M2	WORKING TEMPERATURE 5° C ¸ 40° C
INTERFACE Soft touch keypad (power on included)	DIMENSION AND WEIGHT 200 X 100 X 30 mm 0,385 Kg
